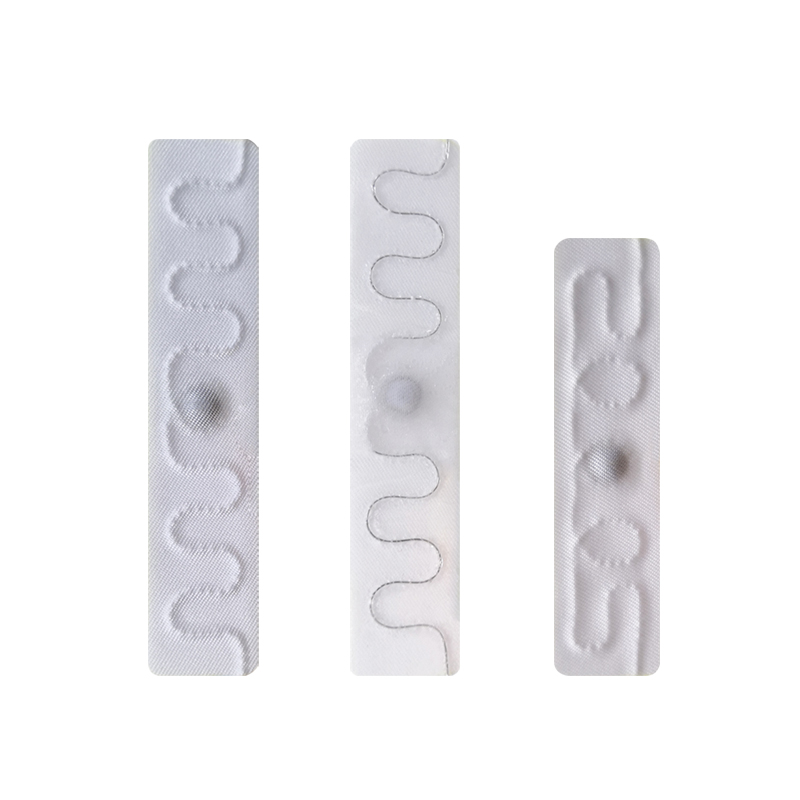

FDY-007 Woven Fabric Textile Linen UHF RFID Laundry Tag
RFID Fabric Laundry Tag is especially suitable for clothing and linen industrial washing, which can withstand 180 degrees high temperature ironing, 56 bar pressure resistance, and industrial washing resistance for more than 200 times.
100% function tested by Voyantic Performance Tester.
100% EPC and User memory checked.
|
1. Dimensions |
(Lx Hx W) 70x15x1mm / 2.756×0.59×0.0394 inch |
|
2. Tag Material |
Fabric |
|
3. Weight |
~0.90g |
|
4. Color |
White |
|
5. Air Interface Protocol |
EPC Class1 Gen2, ISO18000-6C |
|
6. Device Type |
Passive UHF Transponder |
|
7. Operational Frequency |
865 ~ 928MHz |
|
8. IC Type |
Alien H3, NXP Ucode 7M, EPC 128bits, User:32bits, Passord:32bits, TID:96bits |
|
9. Data retention |
10 years |
|
10. Function |
100% tested |
1. Store Temperature: -40°c~ +120°c / -40°F~ +248°F
2. Operating Temperature:
(1) Ironer: 180°c @ 15 sec, 200 cycles
(2) Dryer: 85°c @120min, 200 cycles
120°c @ 60 min,200 cycles
150°c @ 20min,200 cycles
3. Pressure Resistance: Up to 56 bars
4. Wash Cycle: 200 wash cycles or 3 years from shipping date (whichever
comes first)
5. Chemical Resistance: All common chemicals in the washing processes
Pre-encoding
Laser engraving
Customized logo engraving
Customized size of tag
Customized chip of tag
Customized frequency
