RFID Handheld reader

  • UHF RFID Handheld Reader
UHF RFID Handheld Reader

UHF RFID Handheld Reader

  • Description: Products Advantages: -Using Impinj Indy R2000 chip -using CNC aviation aluminum + German Bayer nylon material - Powerful hardware configuration -6000mAh lithium polymer chargeable battery
  • INQUIRY   EMAIL

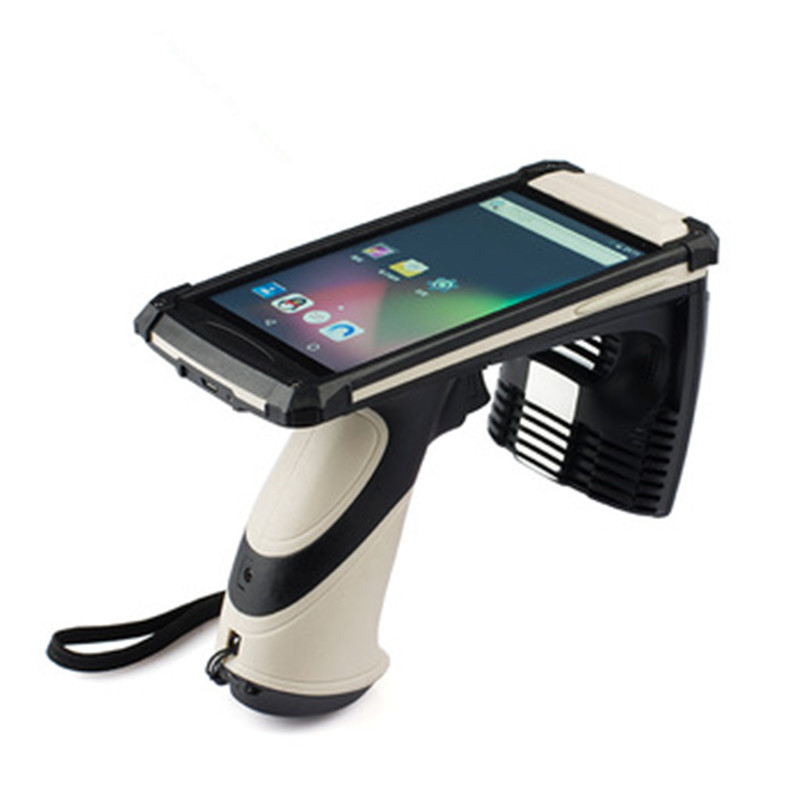

FDY-8190 UHF RFID Handheld Reader


FDY-8190 RFID UHF Handheld Reader is a IP64 industrial-grade handheld reader, with GPS,WIFI, Bluetooth, 3G,4G standard function, can add 1D, 2D barcode, fingerprint, UHF function. The accessories include battery and Charger&USB Data Cable.

This reader can be used for different applications, such as warehouse management, clothes management, library management, and animal management, etc.


FDY-8190 Support Android operating system, optional ultra-high frequency RFID function. According to ergonomic design, external antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.


Features:

1).FDY-8190 is a handheld UHF RFID Reader datal colectionn terminal for retail industry.
2).Unique pistol grip design makes it comfortable and suitable to hand held.
3).High-sensitivity antenna and agglomeration identification technology module, it reaches 6~7m long distance reading and writing.
4).Built -in 6000mAh large- capacity battery and handle backup battery, it guarantees continuous working for over 12 hours.
5).4G/Wif/Blue-tooth/GPS, Dual sim card and Dual standby.
6).IP64 Protection and 1.5M Drop Resistance.


Specifications:

Mechanical Parameters
Materials CNCaluminum + nylon(Bayer)
Dimensions Profile 160x82x129mm
  Grip 111*38*47mm
Weight 640g( Include battery / Standard version)
System Characteristics
Operating System Android 6.0
CPU Quad-core Cortex-A17/1.8GHz
GPU ARM Mali-T764/ High performance3D engine
RAM 2G LPDDR3
  4GLPDDR3 (Optional)
ROM 32GEMMC 5.0
  64G EMMC 5.0 (Optional)
LCD 5.0 Inches /1280°720/ IPS /180 view angle
Touch Screen 1.1mm thickness tempered glass / lO-dot touch / Can be operated with the glove
Hot-swapping Battery Pistol style hot-swapping battery system
PSAM PSAM02 / TI TCA5013 (Optional)
Buttons
Power I Volume*2 3 ALPS buttons/ Operating force 2.2N/Operating life 600,000 cycles
Function Keys 3 ALPS buttons/ Operating force 2.2N/Operating life 600,000 cycles
ScanTrigger OMRON button/0perating force 127N /Operating life 10,000,000 cycles
Power 6,000mAh chargeable Ii-polymer battery
Card Slots Micro SIM card slot PSAM card slot-z
USB Interface Micro USB / Molex connector/Operating life 10,000 cycles
Audio Large speaker stereo system
Vibrator Button style/10mm diameter
Charge Indicator BicolorLED
Wireless Communications
WIFI IEEE 802.11 b/g/n
Bluetooth 61uetooth 4.0
3G Huawei MU609/ Vehicle grade (Optional)
4G Huawei ME 909s /Vehicle grade (Optional
Application Environment
Operating Temp. -20ºC to 60ºC
Storage Temp. -40ºC to 70ºC
Humidity 5%RH to 95%RH(non-condensing)
Protection Grade IP64
Safety Drop Height 2m /6.56ft.
Data Collections
1D Bar Code (Optional
Engine Symbol SE955
Support UPC/EA Symbol SE955N/Code128 /Code39/ Code93/ Cadell/Interleaved 2 of 5/ Discrete 2 of 5/Chinese 2 of 5/ Codabar/ MSI/RSS. etc.
2D Bar Code (Optional)
Engine Symbol SE4750
Support Data matrix/QR Code/PDF417/US Planet /UK Postal, etc.
UHF RFID
Engine Rodbell M-2600 module based on Impinj Indy R2000 chip
Buzzer 112°9.5mm 12300±300Hz
Protocol EPC Global UHF Class 1Gen2 /ISO 18000-6C/ ISO16000-66
Work Frequency 840-960MHz
Output Power 0-33d6m
Peak Inventory Speed > 500tags/s
UHFAntenna 3dBi circularly polarized antenna
Read Distance 6-7m(Tested tag: Impinj E41b)
Supported Regions US, Canada, and other regions following us. FCC Europe and other regions following ETSI /EN 302 208/China /Japan/ Korea / Malaysia.
Camera (Optional) 13 megapixels/automatic focus/flashlight
Global positioning system GPS&GLONASS
Accessories
Two Batteries   Battery Bay    Charger&USB Data Cable   Hanging lace
