UHF RFID Integrated Reader

UHF RFID Middle Range Integrated Reader

Description: Features: This device is a UHF RFID integrated reader. It is designed based on independent intellectual property rights and appearance patent. It features integrated RF reader antenna, small in siz
INQUIRY EMAIL

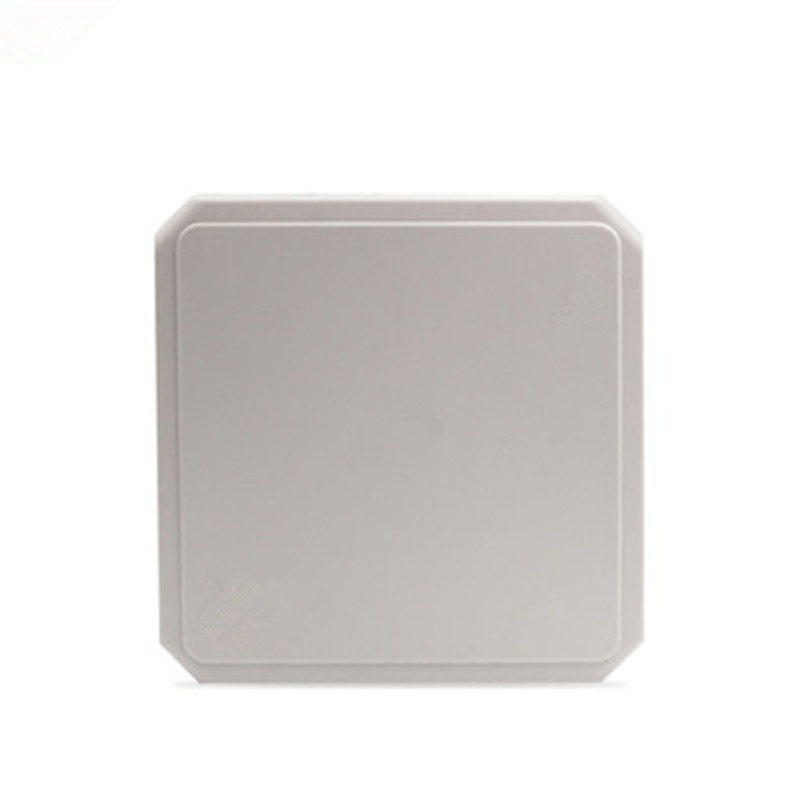

FDY-8120 UHF RFID Middle Range Integrated Reader

Features:

This device is a UHF RFID integrated reader.

It is designed based on independent intellectual property rights and appearance patent.

It features integrated RF reader antenna, small in size, light in weight, IP65, industrial control joint easy to deploy.

Tag buffer size up to 800pcs/96 bits EPC.

It performs excellent UHF R/W function, adapt to global working frequency.

It supply with multi-language SDK (C#, C++,Delphi,VB,Java) , easy for secondary development integration.

Support Windows, Linux, Android Demo software.

Application:

- Personnel and Vehicle access control

- Manufacturing production line management

- Warehouse logistic management

- Assets inventory management

Specification:

Model No.	FDY-8120
Physical Parameter
Dimension	260(L) x 260(W) x 50(H) mm (Exclude bracket and external wires)
Weight	2.0kg (include package)
Shell material	ABS+PC
Antenna front housing color	Ceramic white
Antenna rear housing	Die-casting aluminium alloy
Installation method	Holding pole
UHF RFID Performance Parameter
Radio frequency	FDY independent R&D technology
Frequency	865-868MHz/902-928MHz
Protocol	EPC C1 GEN2 /ISO18000-6C
Built-in antenna	9dBi line polarization
Power	30dBm (adjustable by 1dBm step with FDY demo software)
R/W range	Read range 10~15m, write range >5m (test tag: AZ9662Inlay)
Group read rate	1-5pc EPC Tag
Working areas	US, Canada and other regions following U.S. FCC Part 15 regulation Europe and other regions following ETSI EN 302 208 regulations Mainland China,Japan,Korea,Malaysia,Taiwan
Electric Parameter
Communication interface	Standard: RS232, RJ45, Wiegand Optional: 4G/WIFI/Bluetooth/USB
Serial rate	9600~115200bps
RJ45 rate	10Mbps
GPIO(for your optional)	1 relay output, 1 trigger input
Reading Indicator	Buzzer
Power consumption	~1W
Power supply	220V AC input, +12V/2A adaptor DC output
Application Software	API development kit and application routine based on Windows
SDK	C#, C++, Delphi, VB, Java
Operating Environment
Operating Temperature	-25℃～+70℃
Storage Temperature	-30℃～+80℃
Humidity	5%～95% RH, non condensing
Lighting protection	DC ground
Protection Level	IEC IP65

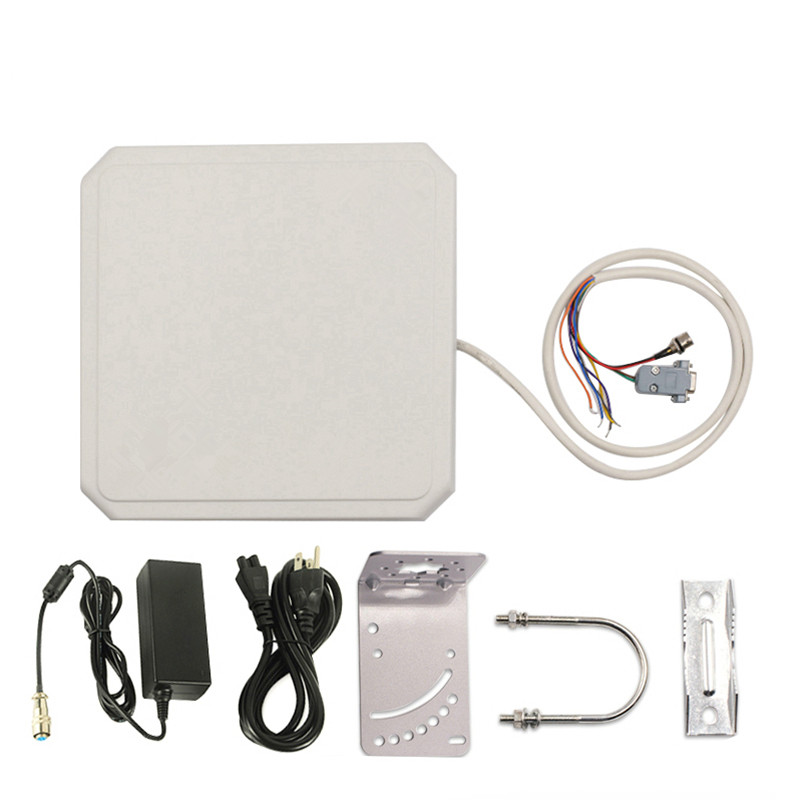

Accessories
Standard	1pc of bracket, power supply, etc.
