HF RFID Card

13.56MHz HF RFID Card

Description: RFID contactless card, also called proximity card, with the chip of low frequency 125KHz, high frequency 13.56MHz, or ultra-high frequency 860~960MHz. Our contactless cards are available with an excep
INQUIRY EMAIL

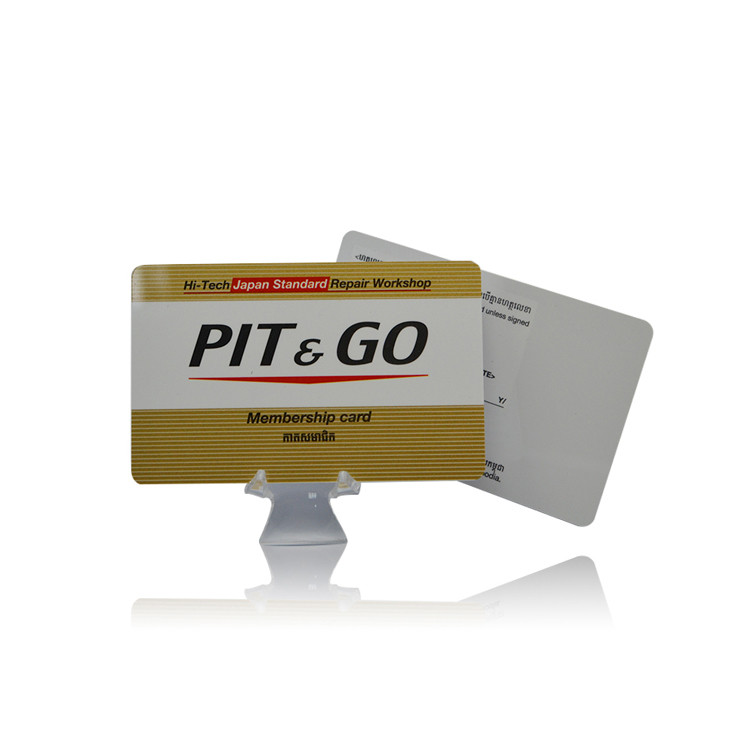

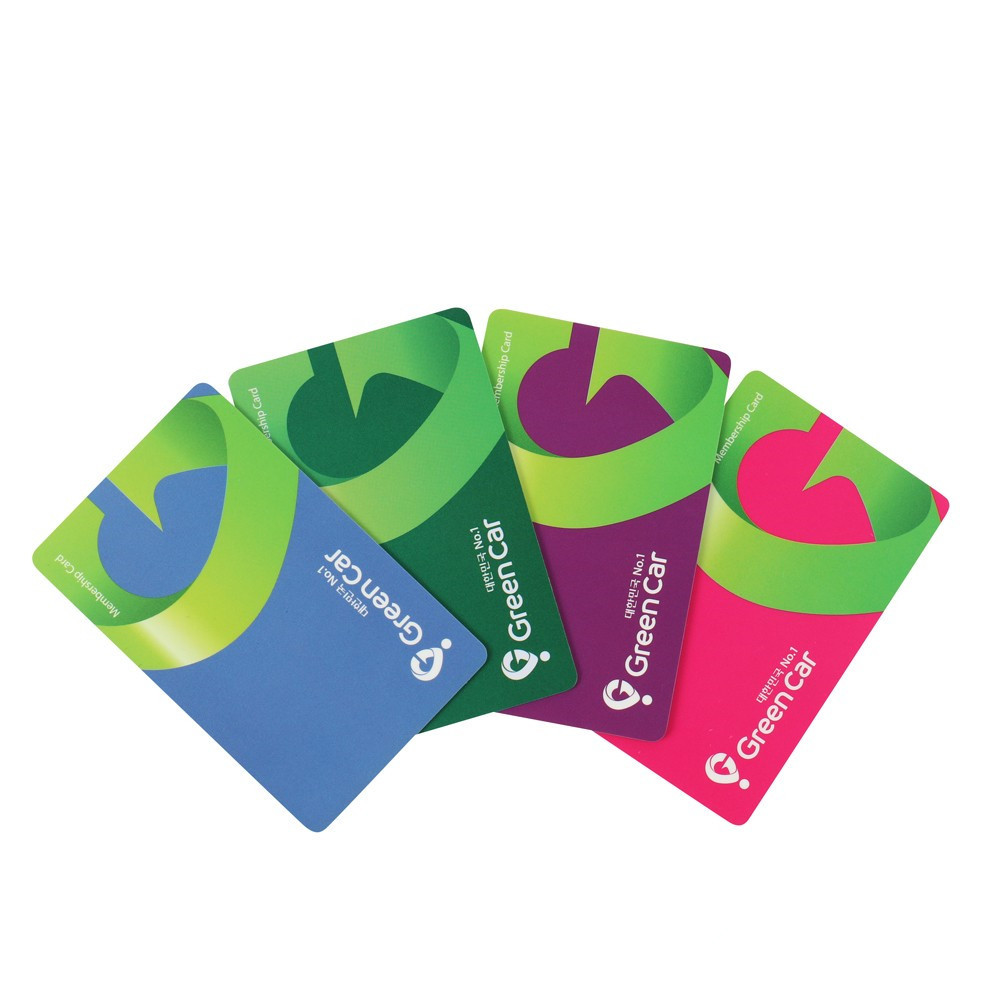

FDY-001H 13.56MHz HF RFID Card

We have the ability to produce your RFID cards in full colour digital print. No surface printing or thermal transfer – these cards are digitally printed directly on to the plastic core of the card and protected underneath the PVC laminate overlay.

Product Description

RFID contactless card, also called proximity card, with the chip of low frequency 125KHz, high frequency 13.56MHz, or ultra-high frequency 860~960MHz. Our contactless cards are available with an exceptionally wide variety of chips and each chip is optimized for ultimate readability.

What we have:

· Laser Printing / Silkscreen Printing Logo / Offset Printing.

· Magnetic Stripe: 2750oe hico, 4000oe hico, 300oe loco.

· Punching Hole, Silver/Gold Metallic, UV Logo, Signature Panel.

· Numbering: Thermal Number, UV Number, Jet Dot Number, Laser Number.

We can support more:

· Ability to Design different RFID antenna, in different RF protocol, and frequency.

· Research and design different encapsulation for special environments.

· Data encoding and encryption options.

· Transponder design base on correspond with customer reader.

· Individual process.

Specification

Materials	PVC, PET, ABS, PET-G, etc.
Chip	TK4100, EM4200, T5577, F08, MIFARE 1K, MIFARE Ultralight, I CODE SLI, etc.
Frequency	LF(125KHz), HF(13.56MHz), UHF(860-960MHz)
Standard	ISO14443A, ISO15693, ISO18000-6C, etc.
Dimension	85.60 x 53.98mm (credit card size, CR80 or customization)
Thickness	0.3mm, 0.5mm, 0.6mm, 0.84mm (0.3mm to 1.5mm upon request)
Craft	Barcode, Scratch Off Panel, Signature Panel, Spray Number, Laser Number, Embossing, etc.
Printing	Offset Printing, Silk-Screen Printing
Card Surface	Frosted/Glossy/Matte Finishing
ID Number Printing	Jet Dot Printing/ Thermo Transfer/ Laser Engrave
Application	Membership Management, Access Control, Hotel, Transportation, Loyalty, Promotion, etc.
Package	1. 200PCS/Box, Box Size: 21.595.5CM 2. 5000PCS/Carton, Cartin Size: 502533CM 3. or Customized

Available chip technologies

Chip Type	Protocol	Capacity	Anti Collision	Function
Available 125KHz Chip
TK4100	/	64 Bit	No	Read Only
EM4200	/	128 Bit	No	Read Only
T5577	/	330 Bit	No	Read/Write
Hitag 1	ISO 11784/5	2K Bit	No	Read/Write
Hitag 2	ISO 11784/5	256 Bit	No	Read/Write
Hitag S 2048	ISO 11784/5	2K Bit	No	Read/Write
Available 13.56MHz Chip
F08	ISO14443A	1KB	No	Read/Write
Ntag213	ISO14443A	180 Byte	No	Read/Write
Ntag215	ISO14443A	540 Byte	No	Read/Write
Ntag216	ISO14443A	924 Byte	No	Read/Write
MIFARE® S50	ISO14443A	1KB	No	Read/Write
MIFARE® S70	ISO14443A	4KB	No	Read/Write
MIFARE® Plus	ISO14443A	2KB/4KB	No	Read/Write
MIFARE® DESFire	ISO14443A	2KB/4KB/8KB	No	Read/Write
MIFARE® Ultralight EV1	ISO14443A	640 Bit	No	Read/Write
MIFARE® Ultralight C	ISO14443A	1184 Bit	No	Read/Write
I CODE SLI	ISO15693	128 Byte	Yes	Read/Write
Ti2048	ISO15693	2KB	Yes	Read/Write
Available 860-960MHz Chip
Alien H3	ISO18000-6C	512 bit	Yes	Read/Write
Monza R6	EPC Class1 Gen2	96 Bit	Yes	Read/Write
